Infusion Therapy
01 · Product Name

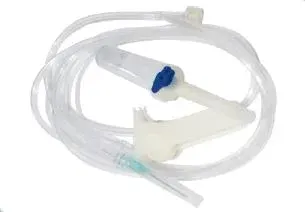

IV Infusion Set
02 · Brand Name·Accu-Flow™ • Accu Set™ Air Safe
Need a price on this?
Send volumes, sizes and destination market — we reply with a quote and the certificate covering this device.
03 · Intended Use
Intended use
Accu-Flow™ and Accu Set™ IV infusion sets are sterile, single-use devices intended to administer fluids such as nutrients and medications into a patient's vascular system through a needle or catheter inserted into a vein, by gravity. Indicated for infusion of IV fluids and drugs, and to prevent or treat dehydration. Not for blood or blood components.
04 · Variants
Available variants
| Variant | Description |
|---|---|
| Accu-Flow Air Safe Regular | Vented, auto air-stop, without Y-site |
| Accu Set Air Safe Elite | Vented, single drip chamber, Y-port, auto air-stop & priming filter |
| Accu Set Air Safe (transparent spike) | Vented, single drip chamber, Y-port, transparent spike |
| Accu-Flow Dial | DEHP-free, vented, dial flow regulator, Y-port |
| Accu-Flow Purge | Non-vented chamber, 0.2 µm purge filter, Y-site |
| Accu-Flow UV Shield | Vented, light-resistant amber tubing, Y-site |
| Accu-Flow UV Shield Purge | Vented, amber, dial regulator, large purge filter |
05 · Product Specifications
Product specifications
| Variant | Product Code | Description | Pcs / Inner Box | Boxes / Outer Carton | Pcs / Outer Carton | Master Carton (mm) |
|---|---|---|---|---|---|---|
| Accu Set Air Safe Elite | 2BPSV | Vented, single drip chamber, Y- port, auto air-stop & priming filter | 25 | 12 | 300 | 460 × 355 × 415MM |
| Accu Set Air Safe (transparent spike) | TS/2BPSV | Vented, single drip chamber, Y- port, transparent spike | 25 | 12 | 300 | 460 × 355 × 415MM |
| Accu-Flow Dial | 2BPFV | DEHP-free, vented, dial flow regulator, Y-port | 30 | 12 | 360 | 460 × 355 × 415MM |
| Accu-Flow Purge | 2BPPV | Non-vented chamber, 0.2 µm purge filter, Y-site | 1 | 100 | 100 | 460 × 355 × 415MM |
| Accu-Flow UV Shield | 2CNPV | Vented, light- resistant amber tubing, Y-site | 25 | 12 | 300 | 460 × 355 × 415MM |
| Accu-Flow UV Shield Purge | 2CUPV | Vented, amber, dial regulator, large purge filter | 25 | 12 | 300 | 460 × 355 × 415MM |
| Accu-Flow Air Safe Regular | 2CDPV | Vented, auto air- stop, without Y- site | 25 | 12 | 300 | 460 × 355 × 415MM |
| Shelf Life | 5 years |
|---|---|
| Packaging | Individual peel-open paper pouch |
| Sterilization | Ethylene oxide (EO) |
| Drip Factor | 20 drops = 1 mL ± 0.1 mL |
| Fluid Filter | 15–20 µm |
| Tubing | PVC (DEHP-free on Accu-Flow Dial) |
| Storage | 10 °C to 40 °C |
| Regulatory | CE marked (MDD, NB 0123), MDR transition with DQS (NB 0297) |
06 · Product Features
Product features
- Auto Air-Stop Filter – Helps stop air entering the line when the drip chamber empties (Air Safe models).
- Precision Drip Chamber – 20 drops = 1 mL ± 0.1 mL with integrated 15–20 µm fluid filter.
- Dial Flow Regulator – Easy, repeatable rate setting (Dial and UV Shield Purge).
- 0.2 µm Purge Filter – Fine filtration during priming (Purge models).
- Light-Resistant Amber Tubing – Protects light-sensitive medication (UV Shield models).
- Y-Site Options – Secondary access for additional medication on Elite, Dial, Purge and UV Shield.
Instructions for use (eIFU)
Supplied instructions are available in English. Confirm the document matches the selected device variant and current pack before use.
