Description
| Brand | Size | Product Code | Catheter | Catheter length(mm) | Flow Rate | Qty Inner/Outer |
|---|---|---|---|---|---|---|
| Easy Vein | 18G | 3DF118/3CE118 | 0.9/1.3 | 45/32 | 90 | 100/1000 50/500 |
| 20G | 3DF120/3CE120 | 0.9/1.1 | 32 | 65 | 100/1000 50/500 | |
| 22G | 3DF122/3CE122 | 0.6/0.9 | 25 | 36 | 100/1000 50/500 | |
| 24G | 3DF124/3CE124 | 0.5/0.7 | 19 | 23 | 100/1000 50/500 | |
| Easy Vein | 18G | 3DG118/3CU118 | 0.9/1.3 | 45/32 | 90 | 100/1000 |
| 20G | 3DG120/3CU120 | 0.8/1.1 | 32 | 65 | 100/1000 | |
| 22G | 3DG122/3CU122 | 0.6/0.9 | 25 | 36 | 100/1000 | |
| 24G | 3DG124/3CU124 | 0.5/0.7 | 19 | 23 | 100/1000 |
Please Download eIFU – Click Here
Safety IV Cannula
Advanced Needlestick Protection for Safer IV Therapy
The SPM Safety IV Cannula is a sterile, single-use peripheral intravenous catheter engineered to provide reliable vascular access while enhancing healthcare worker safety through an integrated needle protection mechanism.
Designed for the administration of intravenous fluids, medications, blood products, and blood sampling procedures, the Safety IV Cannula combines superior clinical performance with advanced infection prevention and needlestick injury protection.
Manufactured from premium medical-grade materials and sterilized using Ethylene Oxide (EO), the device is available in multiple configurations including with or without wings and with or without injection port, making it suitable for a wide range of clinical applications.
Product Overview
The Safety IV Cannula features a precision-engineered stainless-steel introducer needle and a flexible Polyurethane (PUR) or FEP catheter that enables smooth insertion and reliable venous access.
Once vascular access is achieved, the integrated safety mechanism automatically shields the needle upon withdrawal, helping reduce accidental needlestick injuries and improving compliance with modern healthcare safety standards.
The device is color-coded according to gauge size for quick identification and easy selection in busy clinical environments.
Key Features
Integrated Safety Mechanism
Automatic needle protection system helps reduce accidental needlestick injuries during and after cannulation.
Superior Catheter Performance
Flexible PUR/FEP catheter provides excellent kink resistance, patient comfort, and smooth advancement into the vein.
Fast Flashback Confirmation
Transparent flashback chamber enables rapid visualization of blood return for accurate venous access confirmation.
Hydrophobic Filter Technology
Allows air venting while minimizing blood leakage and maintaining procedural cleanliness.
Multiple Product Configurations
Available with:
- Wings & Injection Port
- Wings without Port
- Without Wings
- Without Injection Port
Color-Coded Gauge Identification
Quick and easy gauge recognition for efficient clinical workflow.
Latex-Free & DEHP-Free
Designed to reduce the risk of allergic reactions and support patient safety.
EO Sterilized
Supplied sterile and ready for immediate clinical use.
Clinical Applications
The Safety IV Cannula is suitable for:
- Intravenous fluid administration
- Medication infusion
- Blood transfusion
- Nutritional support
- Hydration therapy
- Blood sampling
- Emergency vascular access
Benefits for Healthcare Professionals
Enhanced User Safety
Integrated safety shield minimizes occupational exposure to contaminated needles.
Improved Patient Care
Provides dependable peripheral venous access for ongoing therapy and treatment.
Reduced Risk of Complications
Supports safe infusion practices while reducing blood exposure and contamination risks.
Better Clinical Efficiency
Easy insertion, clear flashback visualization, and secure catheter placement improve workflow efficiency.

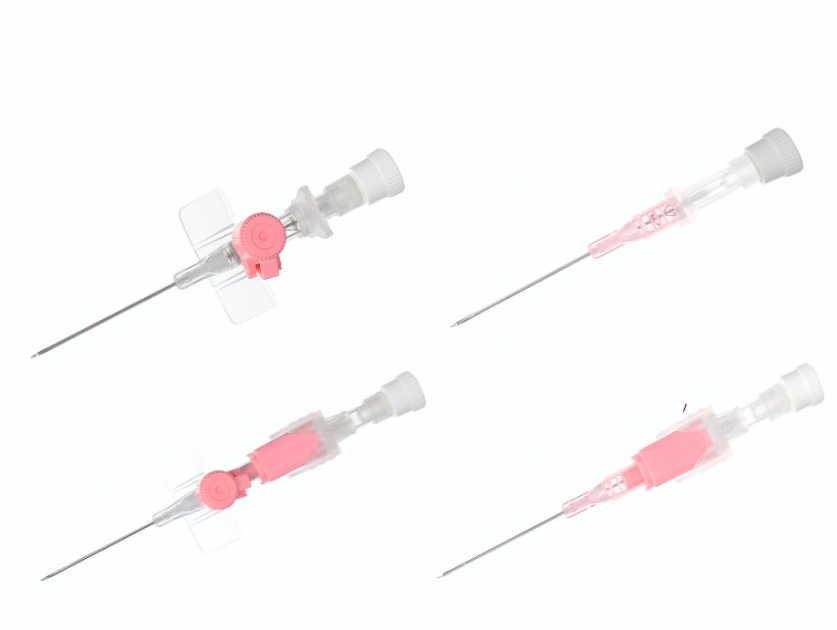

Available Variants
Safety IV Cannula with Injection Port & Wings
Ideal for repeated medication administration and enhanced catheter stabilization.
Safety IV Cannula without Wings & without Injection Port
Designed for standard peripheral intravenous access procedures where a compact design is preferred.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Safety IV Cannula |
| Catheter Material | PUR / FEP |
| Needle Material | Stainless Steel AISI 304 |
| Safety Feature | Automatic Needle Protection |
| Sterilization Method | Ethylene Oxide (EO) |
| Usage | Single Use |
| Latex Content | Latex Free |
| DEHP Content | DEHP Free |
| Radiopaque Catheter | Available |
| Shelf Life | 5 Years |
| Sterility Assurance Level | SAL 10⁻⁶ |
Intended Use
The Safety IV Cannula is intended to provide short-term peripheral vascular access for:
- Administration of IV fluids
- Delivery of medications
- Blood product infusion
- Blood collection procedures
Healthcare Settings
Suitable for use in:
- Hospitals
- Intensive Care Units (ICU)
- Emergency Departments
- Clinics
- Day Care Centers
- Nursing Homes
- Ambulatory Care Facilities
Why Choose SPM Safety IV Cannula?
✔ Integrated Needlestick Prevention Technology
✔ Smooth & Reliable Catheter Insertion
✔ Enhanced Healthcare Worker Protection
✔ High-Quality Medical Grade Materials
✔ EO Sterilized & Infection-Control Focused
✔ Latex-Free & DEHP-Free Construction
✔ Available in Multiple Configurations
✔ Manufactured Under ISO 13485 Quality Standards
✔ Trusted by Healthcare Professionals Worldwide
Packaging & Sterility
Each Safety IV Cannula is individually packed in a sterile blister pack and protected by secondary packaging to maintain sterility and product integrity throughout transportation and storage.
The product is EO sterilized and validated to maintain sterility throughout its shelf life when stored under recommended conditions.
Storage Conditions
- Store between 10°C and 40°C
- Keep in a cool and dry place
- Protect from direct sunlight
- Avoid excessive humidity
- Do not freeze
Manufacturer
SPM Medicare Pvt. Ltd.
SPM Medicare is a leading manufacturer and exporter of disposable medical devices, infection prevention solutions, and infusion therapy products serving healthcare providers in more than 30 countries worldwide.
Request a Quote
Looking for a trusted supplier of Safety IV Cannulas?
Contact SPM Medicare for:
- Bulk Orders
- OEM / Private Label Manufacturing
- Hospital Procurement
- International Distribution
- Product Samples
Visit: www.spmmedicare.com
